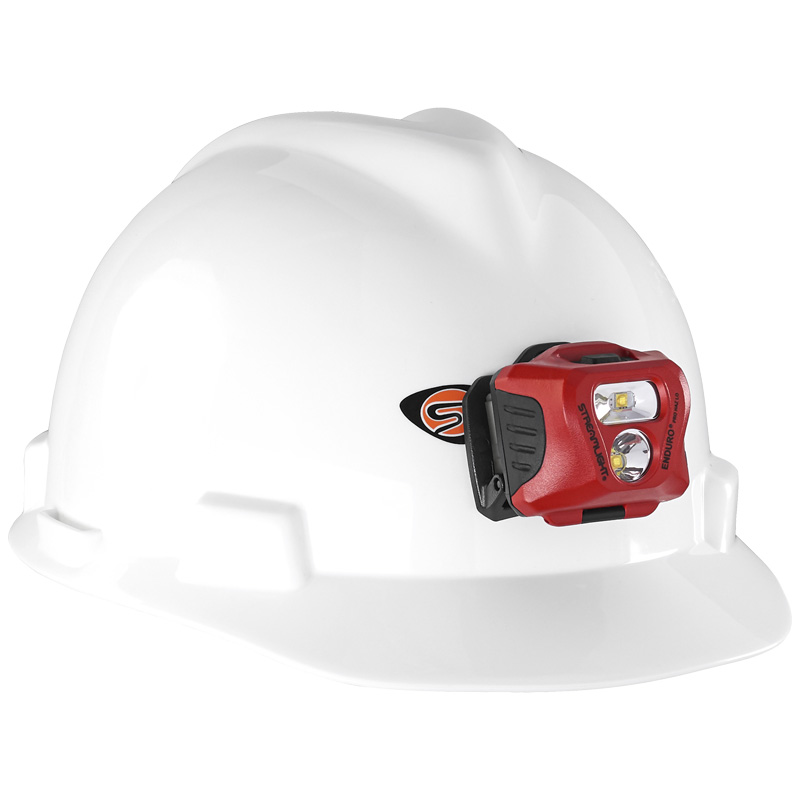

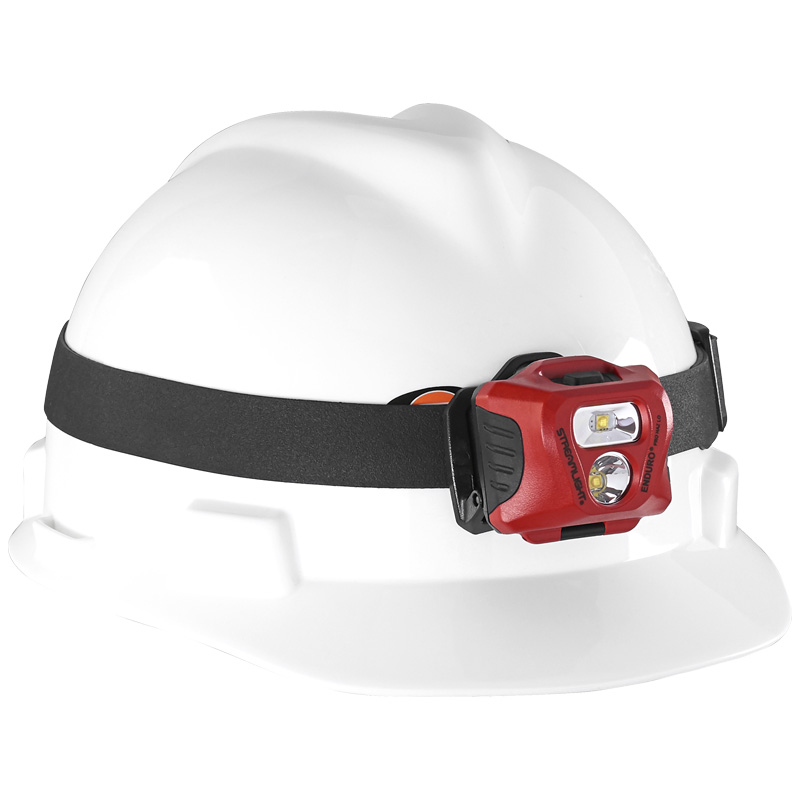

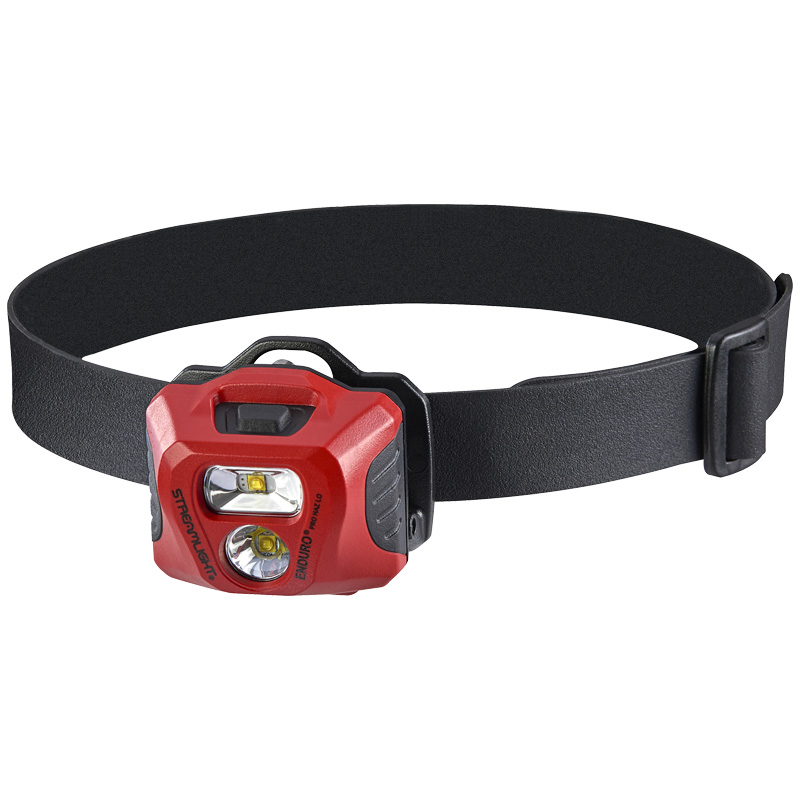

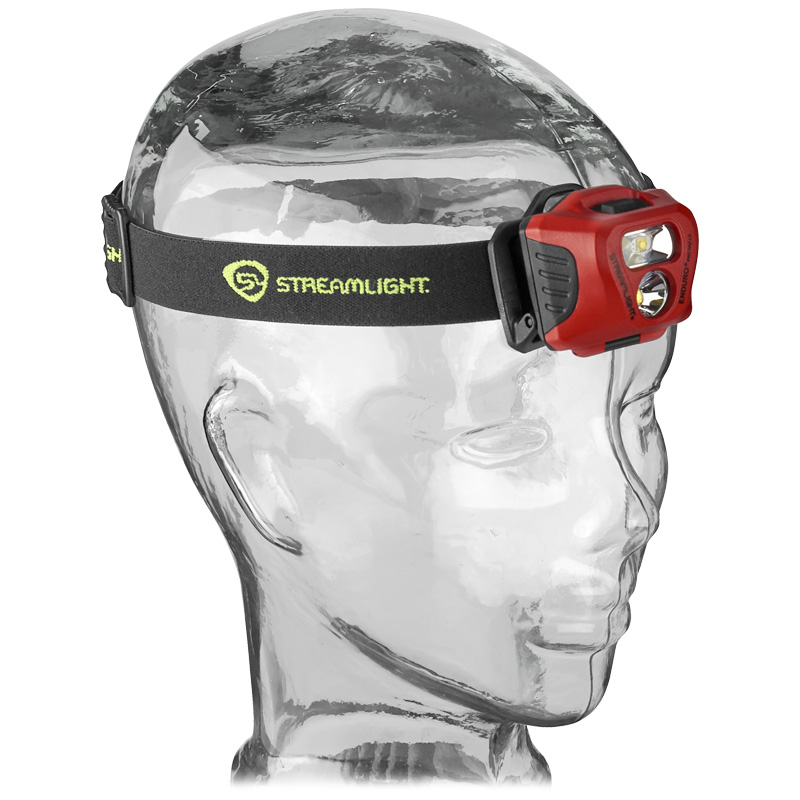

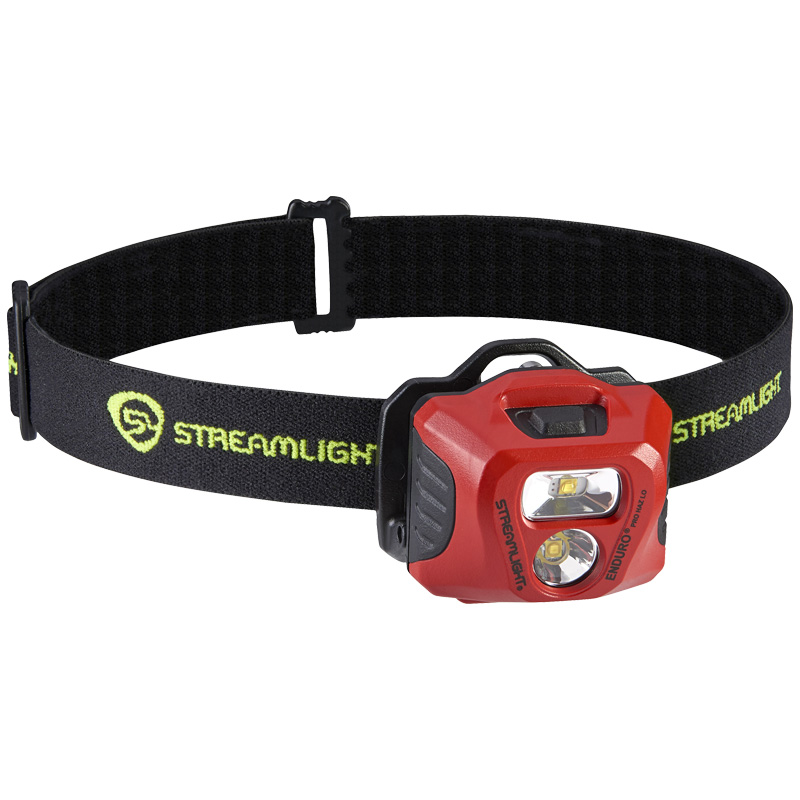

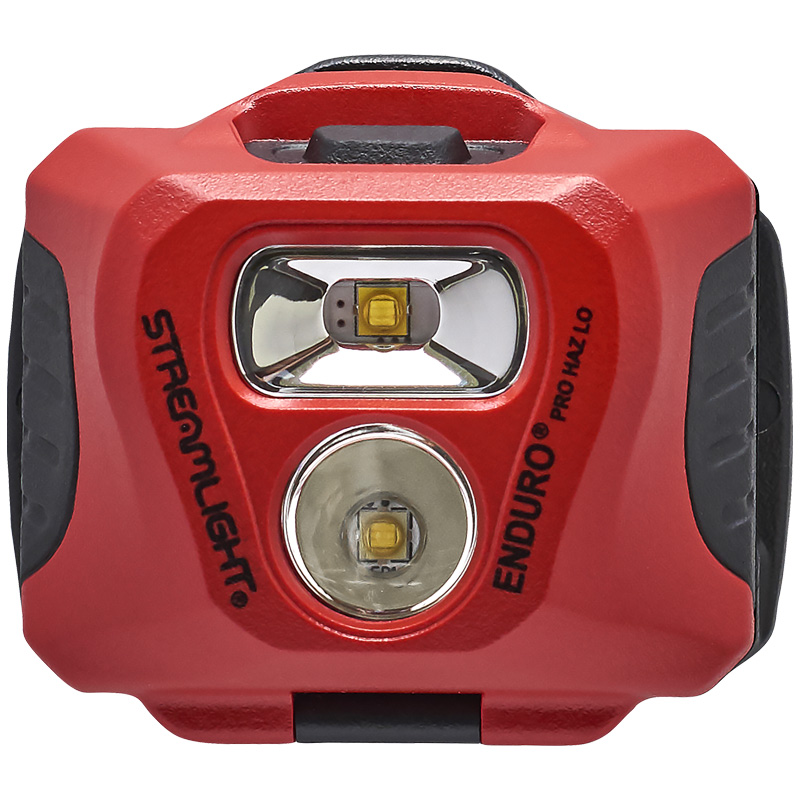

Low-Profile, Zone 0 Rated, Multi-Function Headlamp

Part Numbers List

A low-profile, Zone 0 rated headlamp. Three lighting modes cover a variety of tasks: spot for a focused beam, flood for soft area illumination that won’t tire your eyes and spot/flood combo for even more light output.

  • Click here for data sheet
  • IP67 rated design
  • Three modes: spot/flood combo for increased light output, spot for distance, flood for area illumination
    • Spot/Flood combo: 235 lumens; runs 4.75 hours
    • Spot: 160 lumens; 73m beam; runs 5 hours
    • Flood: 160 lumens; 20m beam; runs 5 hours

Product Specifications

High Lumens
235
Run Time on High
4.75 hours
Run Time on Low
5.00 hours
Beam Distance
73 meters
Max Candela
1,320
Battery Type
AAA Alkaline
Battery Quantity
3
Length
2.19 inches (5.56 centimeters)
Weight
3.50 ounces (99.22 grams)
Colors
Orange

Full product information can be found in the DOCUMENTATION section.

Loading...
Meets applicable European Community Directives
II 1G Ex ia op is IIC T4 Ga – FTZU 18 ATEX 0101X
Ex ia op is IIC T4 Ga - DNV 20.0025 X
Permissible Handheld Flashlight. Approval No. 20-A160001-0. Tested for Intrinsic Safety in Methane-Air mixtures only. (approved for use with Energizer E91, Duracell MN1500 and Rayovac NO.815)
Class I, II, Division 1, Groups A, B, C, D, E, F, G; Class III; CL I, ZN 0, IIC; Exia; T-Code: T4
