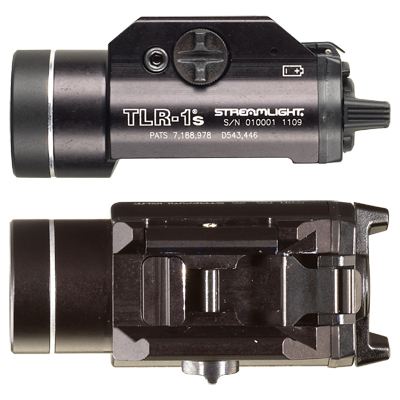

TLR-1®S GUN LIGHT
Strobing Rail-Mounted Tactical Light
Part Numbers List- User-programmable strobe
- 300 lumens; 2.5-hour run time; 12,000 candela peak beam intensity
- Powered by two (2) 3-volt CR123A lithium batteries

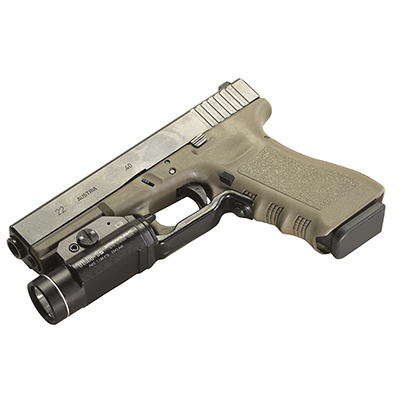

- Rail grip clamp system securely attaches/detaches quickly and safely with no tools and without putting your hands in front of the muzzle
- Includes keys for GLOCK®-style rails, MIL-STD-1913 (Picatinny) rails, Beretta® 90two, Smith & Wesson® SW99, and Smith & Wesson® TSW
Product Specifications
High Lumens
300
Run Time
2.50 hours
Max Candela
12,000
Battery Type
CR123A Lithium
Battery Quantity
2
Length
3.39 inches (8.61 centimeters)
Weight
4.18 ounces (118.50 grams)
Colors
Black
Full product information can be found in the DOCUMENTATION section.
Where to Buy
Enter your zip/postal code below to locate a Streamlight dealer.
Where to buy
Enter your zip/postal code
Product Extra Info
C4® TECHNOLOGY LEAVES OTHER LEDs IN THE DARK.
NEW C4® LED TECHNOLOGY PUMPS UP THE BRIGHTNESS UP TO 3X MORE LIGHT INTENSITY.
Streamlight introduces a whole new kind of LED. With a brighter, more powerful, blinding light than any LED that’s come before. Our new Streamlight-engineered reflector with C4 Photonic Crystal technology almost triples the brightness and creates an intense beam that pierces the darkness. So you get the long-run times and indestructibility of an LED with a new level of brightness that leaves other LEDs in the dark.
C4 approximates the range and brightness of a xenon bulb
FIRE VULCAN® LED – BLUE LED TAILLIGHTS
|
|
Candela (peak beam intensity) |
Bulb Lumens |
|
8W Flood |
1500 |
150 |
|
20W Flood |
3000 |
400 |
|
8W Spot |
80,000 |
150 |
|
20W Spot |
105,000 |
400 |
|
8W Dual-filament Spot |
70,000 each |
157 |
|
Sidewinder Compact® II Light Output and Battery Run Time |
||||||
| LED TYPE | Illumination Output (100%) |
Low (10%) Output |
Medium 1 (25%) Output |
Medium 2 (45%) Output |
High (100%) Output |
Strobe (at 100% Output) |
| White C4® LED w/ CR123 | 55 Lumens 1175 Candela* 69m Beam Distance |
70 Hours w/ CR123/AA Lithium Battery 40 Hours w/ AA Alkaline Battery |
28 Hours w/ CR123/AA Lithium Battery 16 Hours w/ AA Alkaline Battery |
16 Hours w/ CR123/AA Lithium Battery 8 Hours w/ AA Alkaline Battery |
6 Hours w/ CR123/AA Lithium Battery 2 Hours w/ AA Alkaline Battery |
10 Hours w/ CR123/AA Lithium Battery 4 Hours w/ AA Alkaline Battery |
| White C4® LED w/ AA Lithium | 47 Lumens 1000 Candela* 63m Beam Distance |
|||||
| White C4® LED w/ AA Alkaline | 47 Lumens 1000 Candela* 63m Beam Distance |
|||||
| 5mm IR 880nm |
25mW/sr (min) radiant intensity |
100+ Hours w/ CR123/AA Lithium Battery 100+ Hours w/ AA Alkaline Battery |
72 Hours w/ CR123/AA Lithium Battery 48 Hours w/ AA Alkaline Battery |
36 Hours w/ CR123/AA Lithium Battery 18 Hours w/ AA Alkaline Battery |
16 Hours w/ CR123/AA Lithium Battery 9 Hours w/ AA Alkaline Battery |
24 Hours w/ CR123/AA Lithium Battery 14 Hours w/ AA Alkaline Battery |
| 5mm Red 630nm |
1.5 Lumen 60 Candela* 15m Beam Distance |
100+ Hours w/ CR123/AA Lithium Battery 100+ Hours w/ AA Alkaline Battery |
72 Hours w/ CR123/AA Lithium Battery 48 Hours w/ AA Alkaline Battery |
36 Hours w/ CR123/AA Lithium Battery 18 Hours w/ AA Alkaline Battery |
16 Hours w/ CR123/AA Lithium Battery 9 Hours w/ AA Alkaline Battery |
24 Hours w/ CR123/AA Lithium Battery 14 Hours w/ AA Alkaline Battery |
| 5mm Blue 470nm |
1.8 Lumens 130 Candela* 23m Beam Distance |
100+ Hours w/ CR123/AA Lithium Battery 100+ Hours w/ AA Alkaline Battery |
60 Hours w/ CR123/AA Lithium Battery 36 Hours w/ AA Alkaline Battery |
24 Hours w/ CR123/AA Lithium Battery 12 Hours w/ AA Alkaline Battery |
12 Hours w/ CR123/AA Lithium Battery 6 Hours w/ AA Alkaline Battery |
18 Hours w/ CR123/AA Lithium Battery 10 Hours w/ AA Alkaline Battery |
| 5mm Green 527nm |
4.5 Lumens 68 Candela* 16m Beam Distance |
100+ Hours w/ CR123/AA Lithium Battery 100+ Hours w/ AA Alkaline Battery |
60 Hours w/ CR123/AA Lithium Battery 36 Hours w/ AA Alkaline Battery |
24 Hours w/ CR123/AA Lithium Battery 12 Hours w/ AA Alkaline Battery |
12 Hours w/ CR123/AA Lithium Battery 6 Hours w/ AA Alkaline Battery |
18 Hours w/ CR123/AA Lithium Battery 10 Hours w/ AA Alkaline Battery |
| *Candela Peak Beam Intensity All runtime claims to 10% of initial output level. Illumination output electronically regulated. (See model for specific LED configuration) |
||||||
Sidewinder Compact® 185° Articulating Head
This product meets the manufacturing and performance testing requirements as authorized by the Product Manager - Clothing and Individual Equipment, Authorization Number FL090526-HH01, NSN Number 6230-01-574-6027. This authorization does not constitute an endorsement by the U.S. Army
Sidewinder Compact®
Rubber dome actuator and 4-position pull-to-turn locking rotary selector knob with IR tactile indicator (or green LED For tactical mode) offers easy operation even when wearing heavy gloves
Sidewinder Compact®
Clips onto helmet with helmet mount accessory. Fully rotates on mount in either direction. Sidewinder Compact is available with or without helmet mount.
Sidewinder Compact®
Durable belt/clothing clip with integral helmet mount features allow for hands-free use
|
Sidewinder Compact Light Output and Battery Run Time |
||||||
| LED TYPE | Illumination Output (100%) |
Low (5%) Output |
Medium 1 (25%) Output |
Medium 2 (60%) Output |
High (100%) Output |
Strobe (at 100% Output) |
| White C4® LED | 55 Lumens 1175 Candela* 69m Beam Distance |
60+ Hours | 28 Hours | 9 Hours | 5.25 Hours | 9 Hours |
| 5mm IR 880nm |
25mW/sr (min) radiant intensity |
100+ Hours | 48 Hours | 24 Hours | 14 Hours | 24 Hours |
| 5mm Red 630nm |
1 Lumen 40 Candela* 13m Beam Distance |
100+ Hours | 48 Hours | 24 Hours | 14 Hours | 24 Hours |
| 5mm Blue 470nm |
1.8 Lumens 130 Candela* 23m Beam Distance |
100+ Hours | 36 Hours | 18 Hours | 10 Hours | 18 Hours |
| 5mm Green 527nm |
4.5 Lumens 68 Candela* 16m Beam Distance |
100+ Hours | 36 Hours | 18 Hours | 10 Hours | 18 Hours |
| *Candela Peak Beam Intensity All runtime claims to 10% of initial output level. Illumination output electronically regulated. (See model for specific LED configuration) |
||||||
This product meets the manufacturing and performance testing requirements as authorized by the Product Manager - Clothing and Individual Equipment, Authorization Number FL090526-TH01, NSN Number 6230-01-571-8752. This authorization does not constitute an endorsement by the U.S. Army
|
Sidewinder® w/ C4® Light Output and 2 AA Alkaline Battery Run Time |
||||||
| LED | Light Output | Low (5%) Output |
Medium 1 (25%) Output |
Medium 2 (60%) Output |
High (100%) Output |
Strobe (at 100% output) |
| White C4® LED | 55 Lumens 1175 Candela* 69m Beam Distance |
100 Hours+ | 45 Hours | 11 Hours | 5.5 Hours | 10 Hours |
| 5mm IR LED (880nm) | 25mW/sr (min) radiant intensity | 200 Hours+ | 140 Hours | 60 Hours | 24 Hours | 40 Hours |
| 5mm Red LED (630nm) | 1 Lumen 40 Candela* 13m Beam Distance |
200 Hours+ | 140 Hours | 60 Hours | 24 Hours | 40 Hours |
| 5mm Blue LED (470nm) | 1.8 Lumens 130 Candela* 23m Beam Distance |
150 Hours+ | 100 Hours | 35 Hours | 16 Hours | 30 Hours |
| 5mm Green LED (527nm) | 4.5 Lumens 68 Candela* 16m Beam Distance |
150 Hours+ | 100 Hours | 35 Hours | 16 Hours | 30 Hours |
| *Candela Peak Beam Intensity Illumination output electronically regulated. (See model for specific LED configuration) |
||||||
VANTAGE® MOUNTING OPTIONS
The Vantage will mount either above...
...or below the helmet brim.
VANTAGE®TAIL LIGHT AND SWITCH
Dual direction, easy access On/Off switch
470nm ultra-bright blue taillight LED
