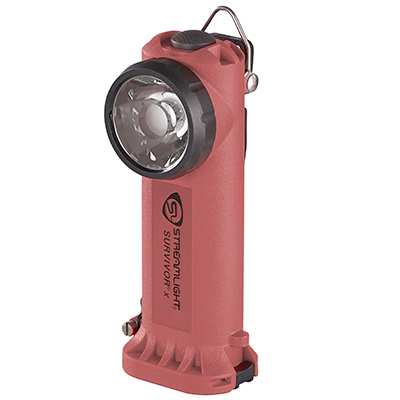

SURVIVOR® X RIGHT ANGLE ATEX LIGHT :: RECHARGEABLE OR ALKALINE
ATEX Rated Right-Angle Firefighter's Light

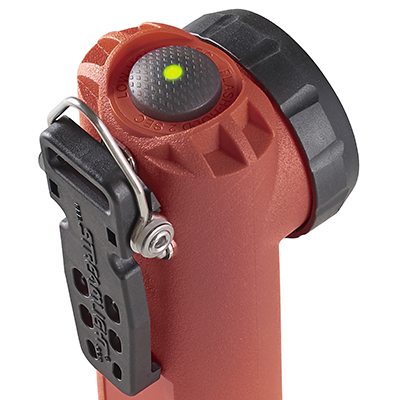

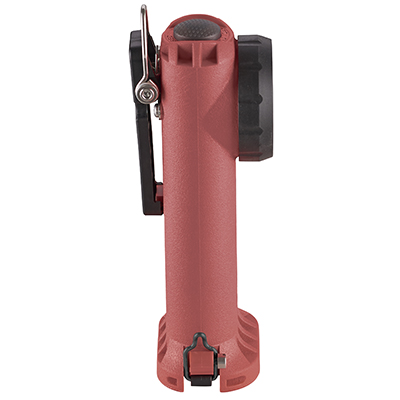

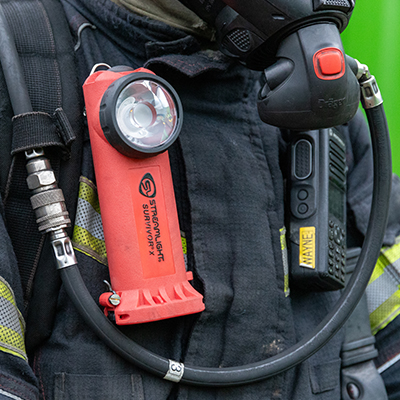

Part Numbers ListZone 0 rated, the Survivor® X features a low-profile bezel that doesn’t interfere with gear and equipment. The clip securely grabs onto gear, and the D-ring allows your light to hang forward for hands-free use.
- Available in Rechargeable and Alkaline models
- LED technology with three lighting modes:
- Rechargeable model
- High: 250 lumens; 447m beam distance; 50,000 candela; runs 3.75 hours
- Low: 60 lumens; 237m beam distance; 14,000 candela; runs 15 hours
- Flash for signaling: runs 8 hours
- Alkaline model
- High: 250 lumens; 447m beam distance; 50,000 candela; runs 5 hours
- Low: 60 lumens; 237m beam distance; 14,000 candela; runs 15 hours
- Flash for signaling: runs 8 hours
- Rechargeable model
- THE PRODUCT SPECIFICATIONS BELOW REFER TO THE RECHARGEABLE MODEL ONLY

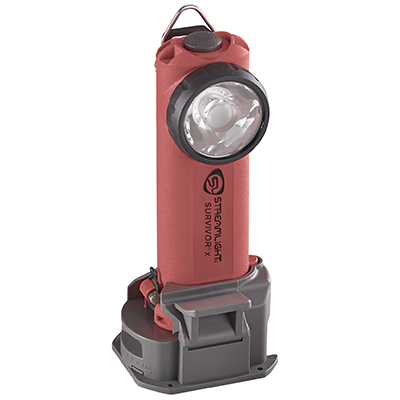

Note: The Survivor® X is not compatible with legacy Survivor® chargers.
Product Specifications
High Lumens
250
Run Time on High
3.75 hours
Run Time on Low
15.00 hours
Beam Distance
447 meters
Max Candela
50,000
Battery Type

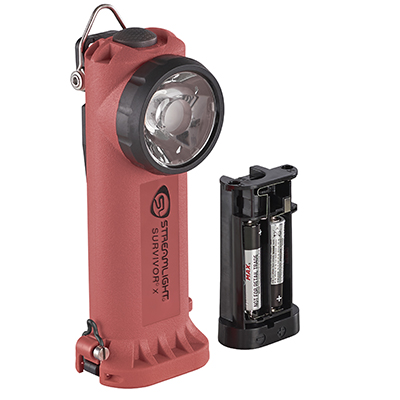

Lithium Ion Cell Pack, AA Alkaline
Length
7.06 inches (17.93 centimeters)
Weight
12.20 ounces (345.86 grams)
Colors
Orange
Full product information can be found in the DOCUMENTATION section.
Loading...
SGS22ATEX0081; BAS22UKEX0222; IECEx BAS22.0045
II 1G Ex ia IIC T3/T4 Ga; II 2D Ex ib IIIB T270°C Db
