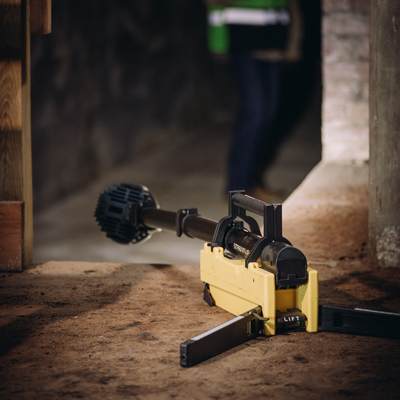

  • 07_situational_tunnel
  • PortSceneLight_situational_data
  • PortSceneLight_situational_railroad
  • PSL_4
  • PortSceneLight_features

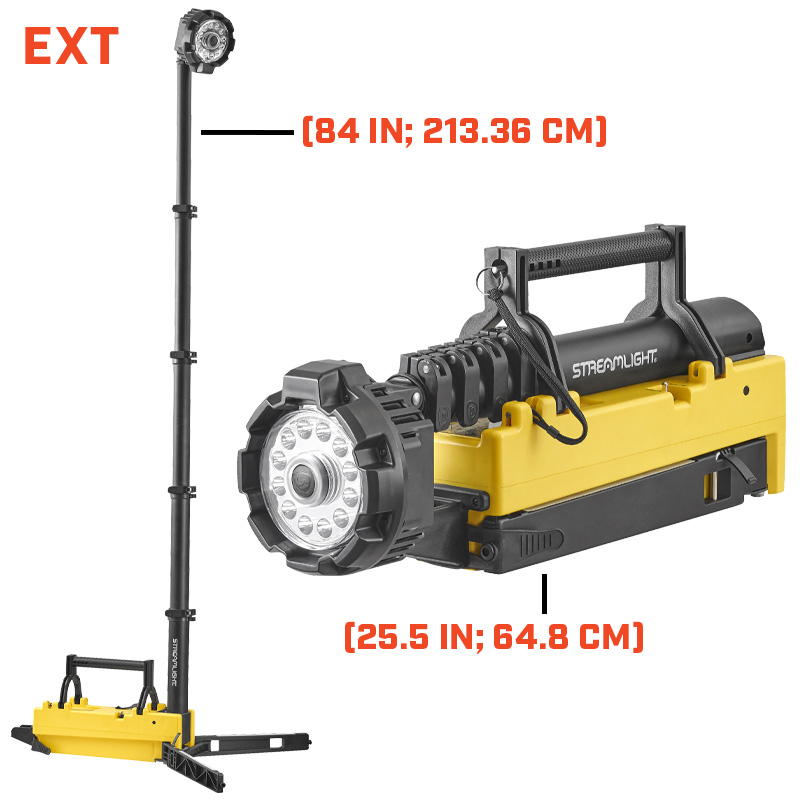

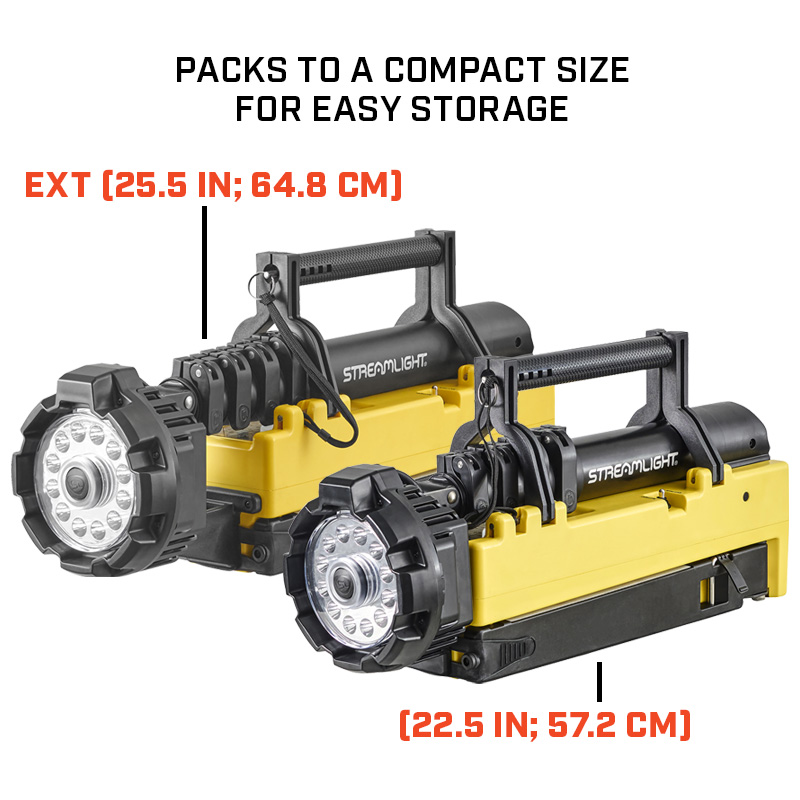

  • PortSceneLight_dimensions
Print

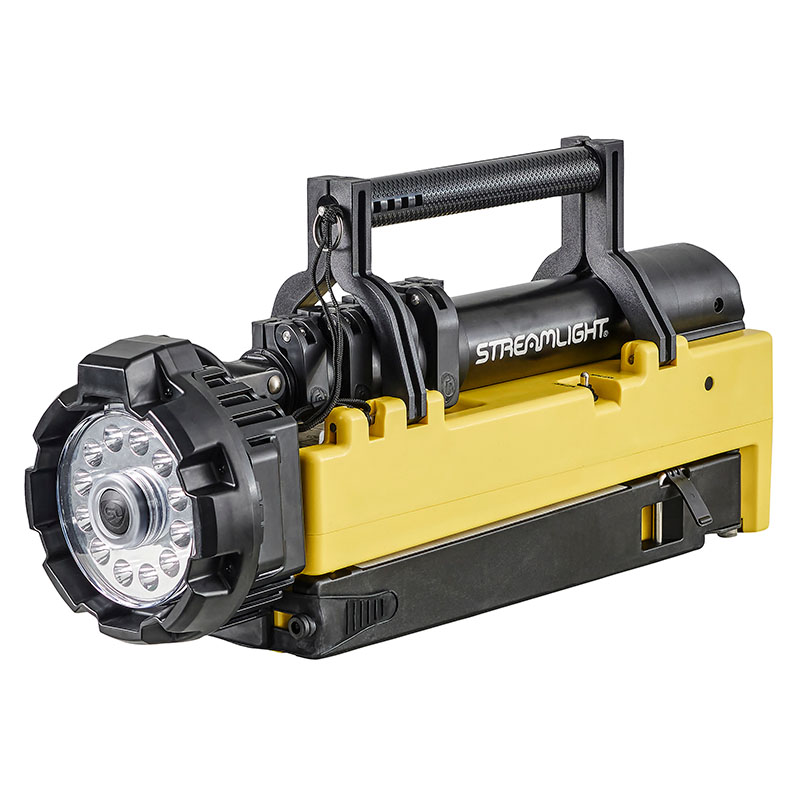

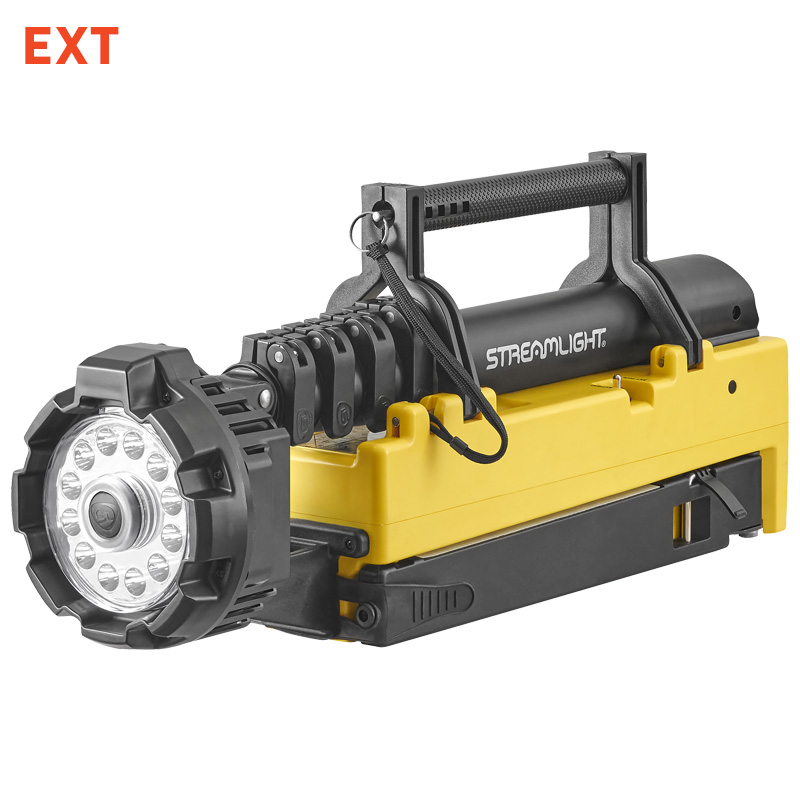

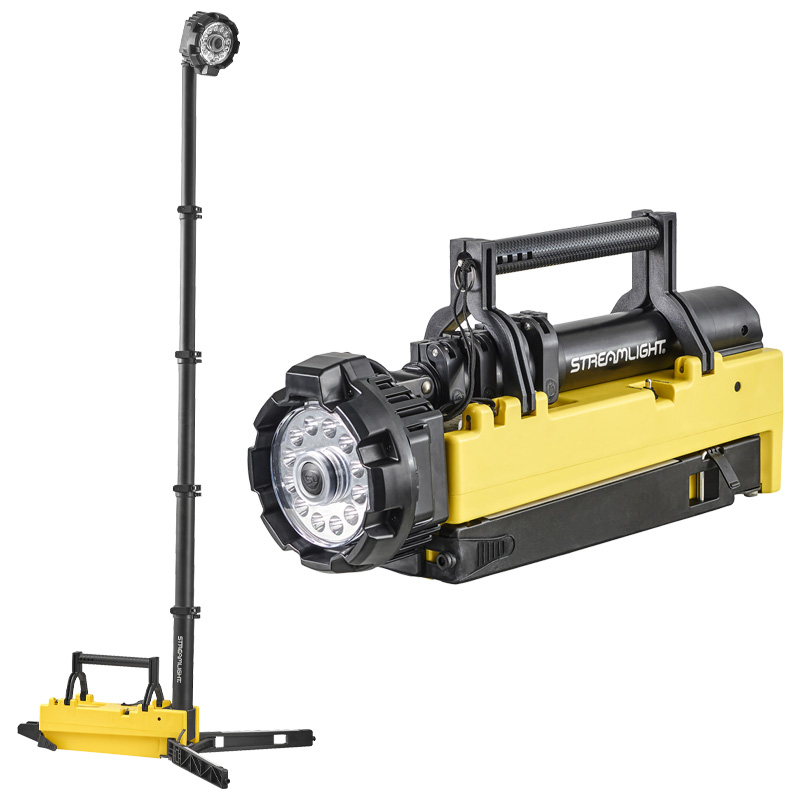

RECHARGEABLE LED PORTABLE SCENE LIGHT EXT

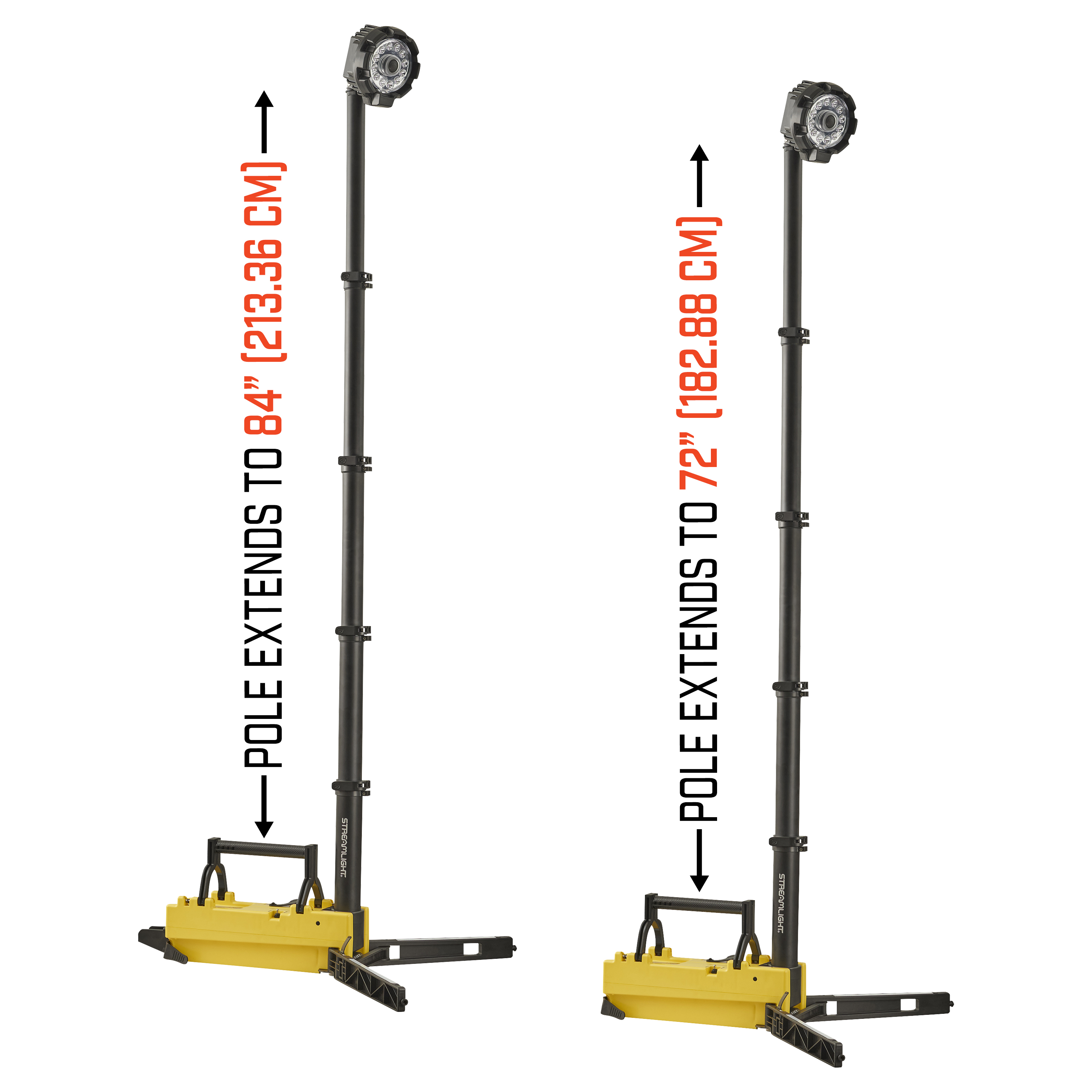

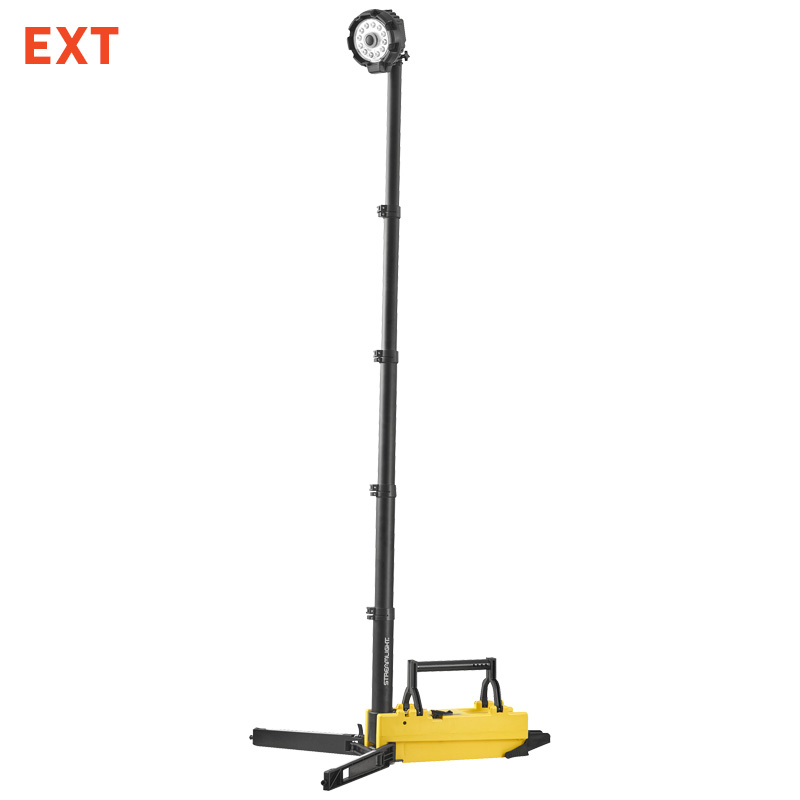

  • Scene-Light-72-84-Extended

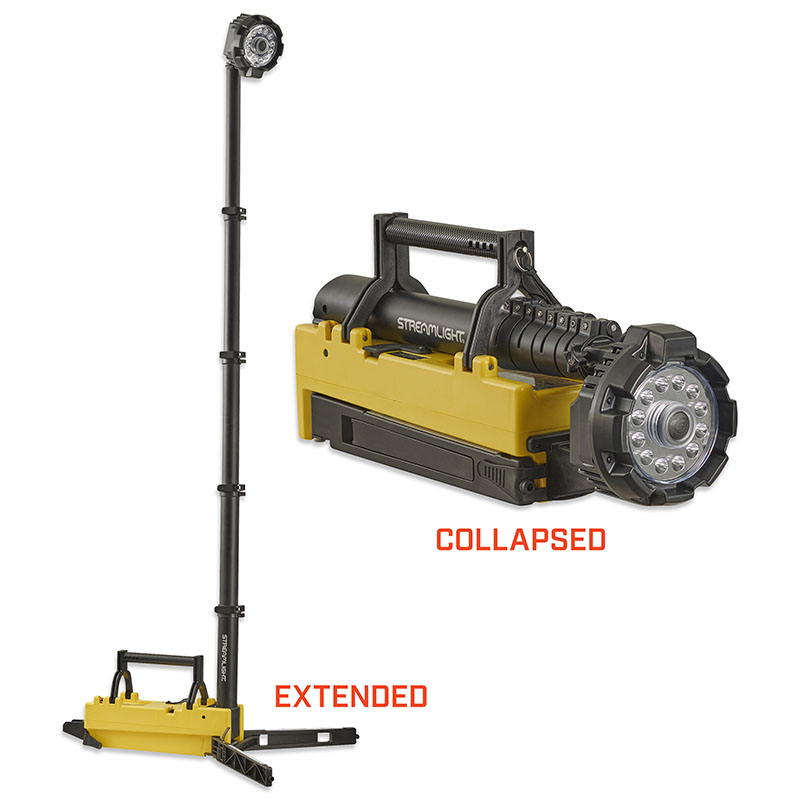

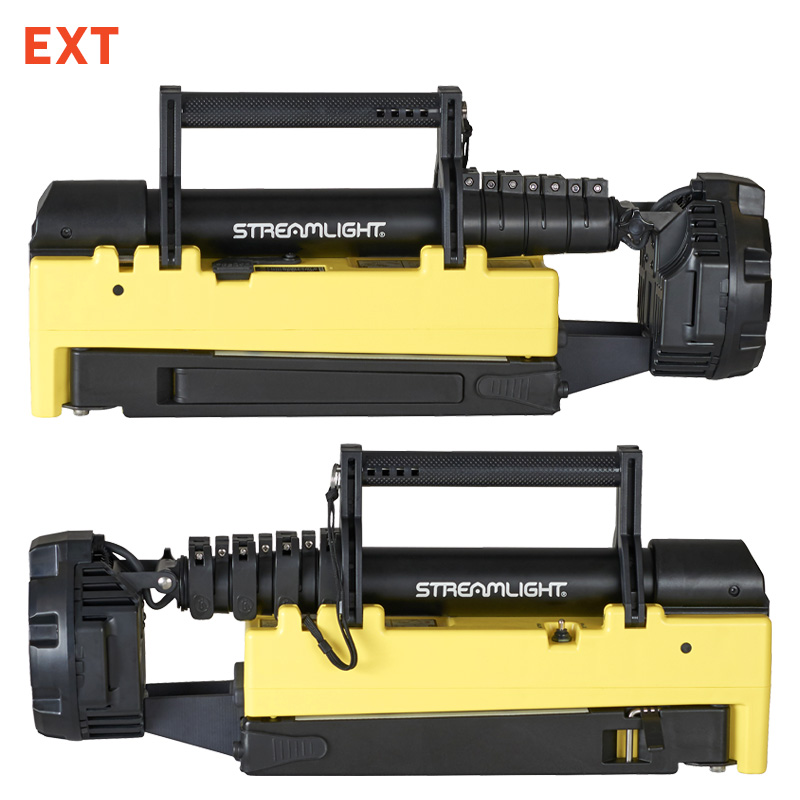

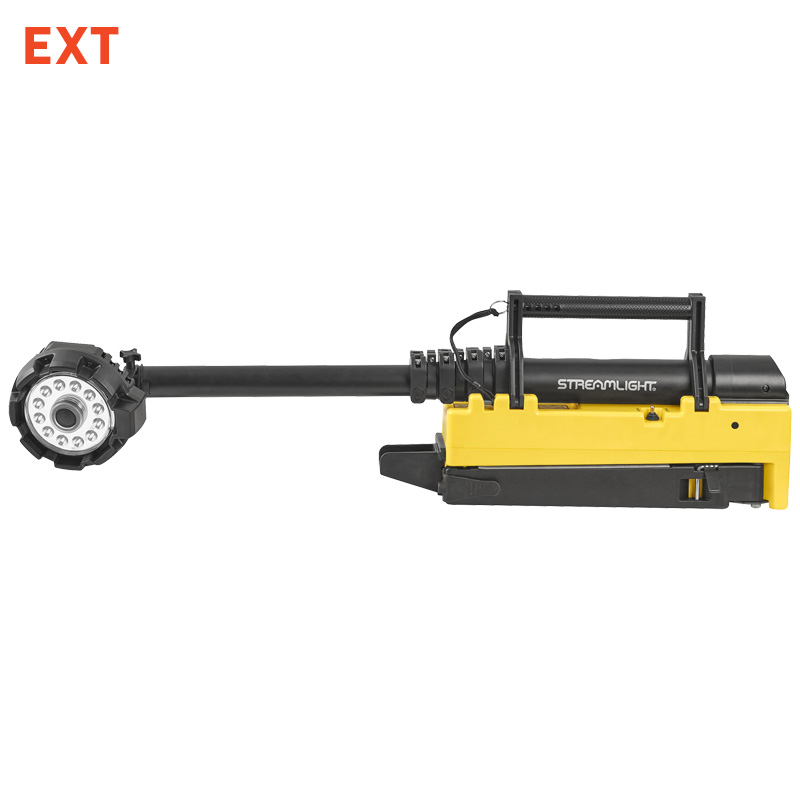

  • PortSceneLight_Extended_Collapsed

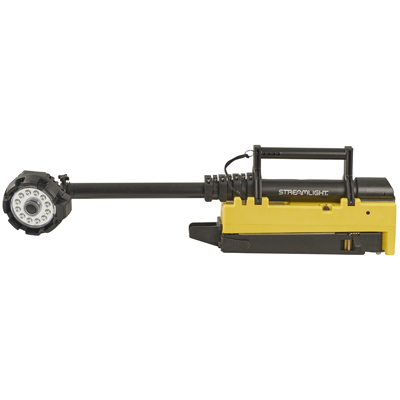

  • Portable-Scene-Light-EXT

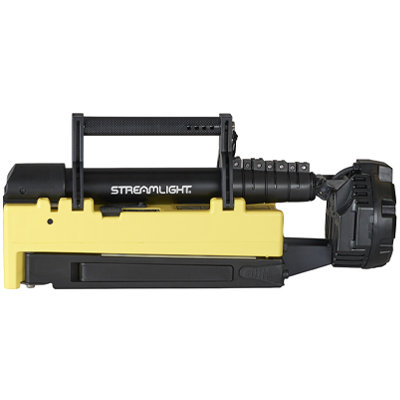

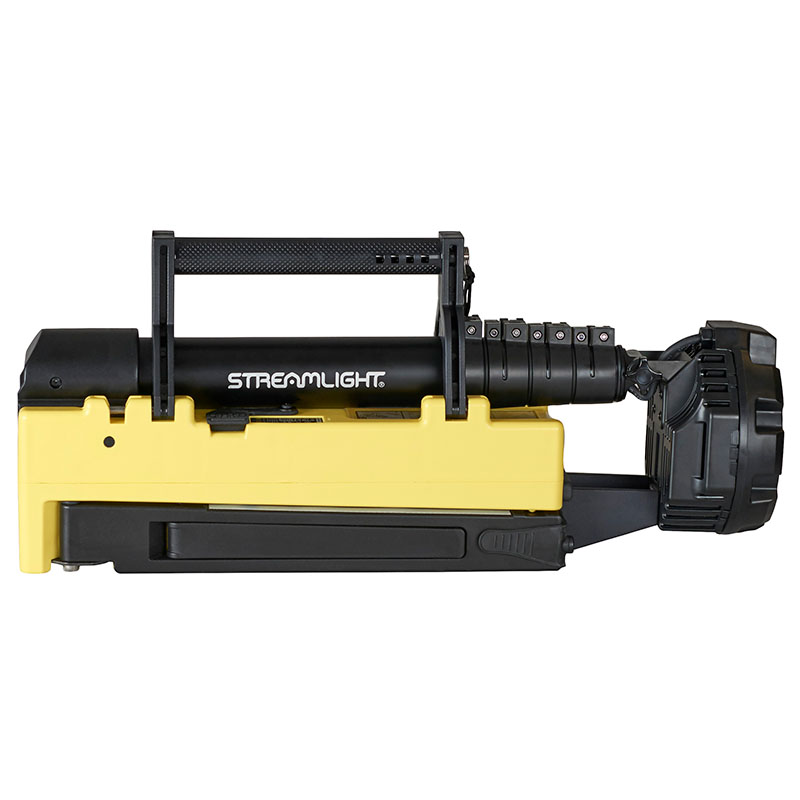

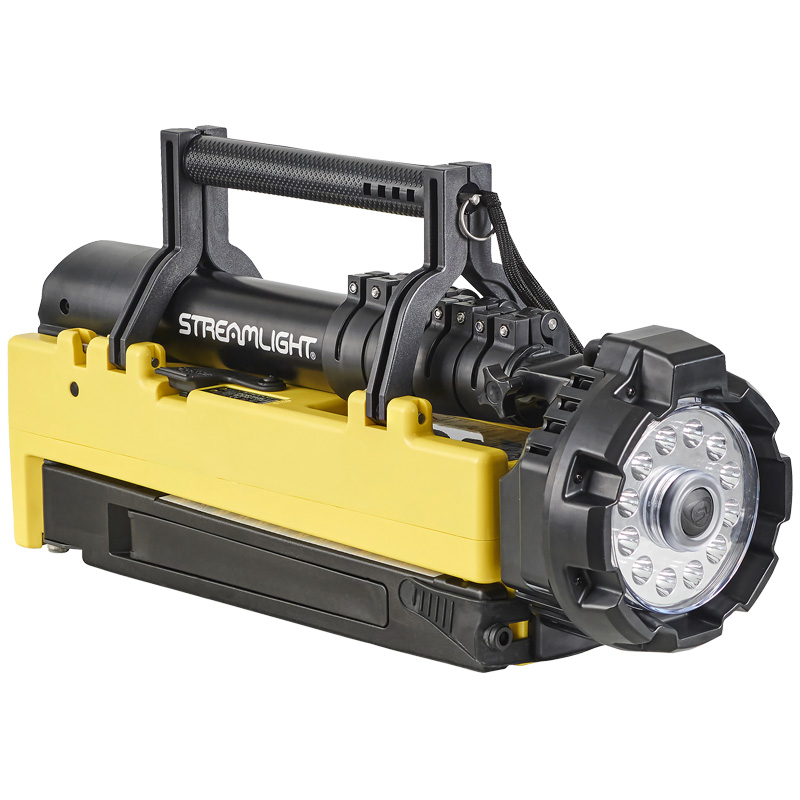

  • Scene-Light-EXT-Compact
  • PortSceneLight_product_features

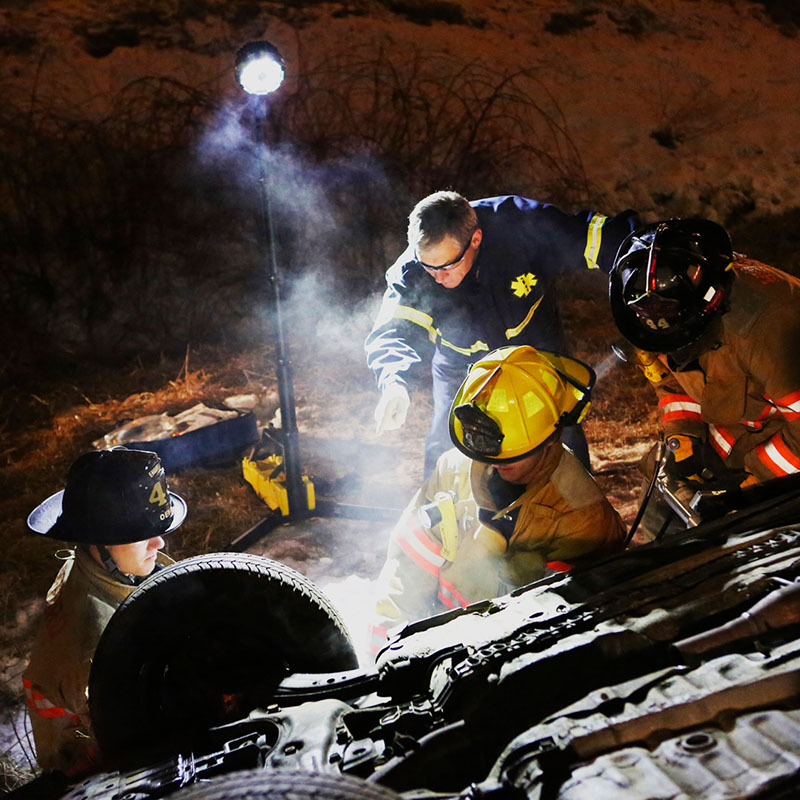

  • 08_situational_emergency

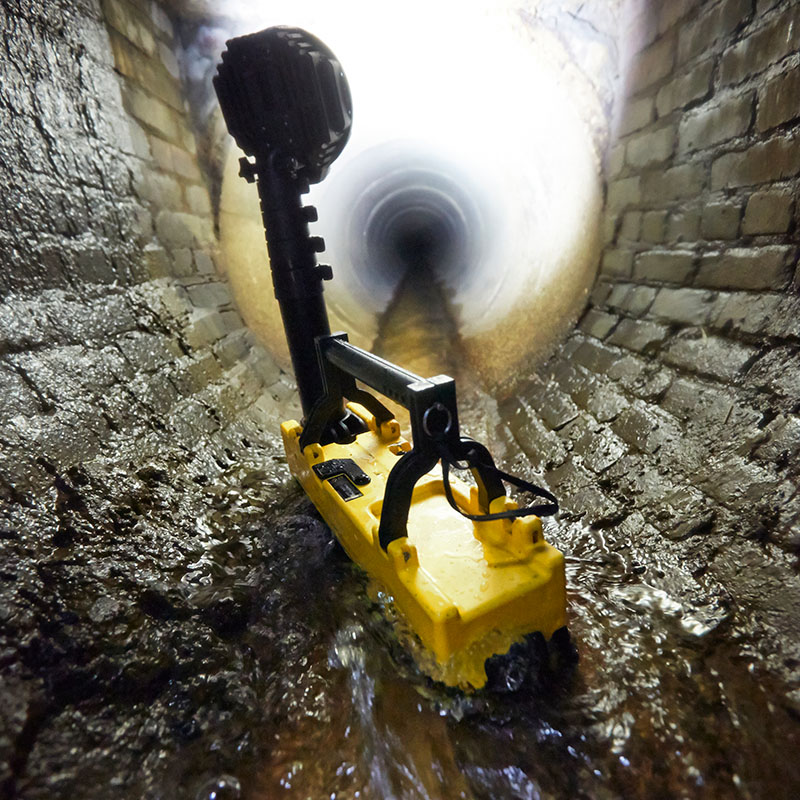

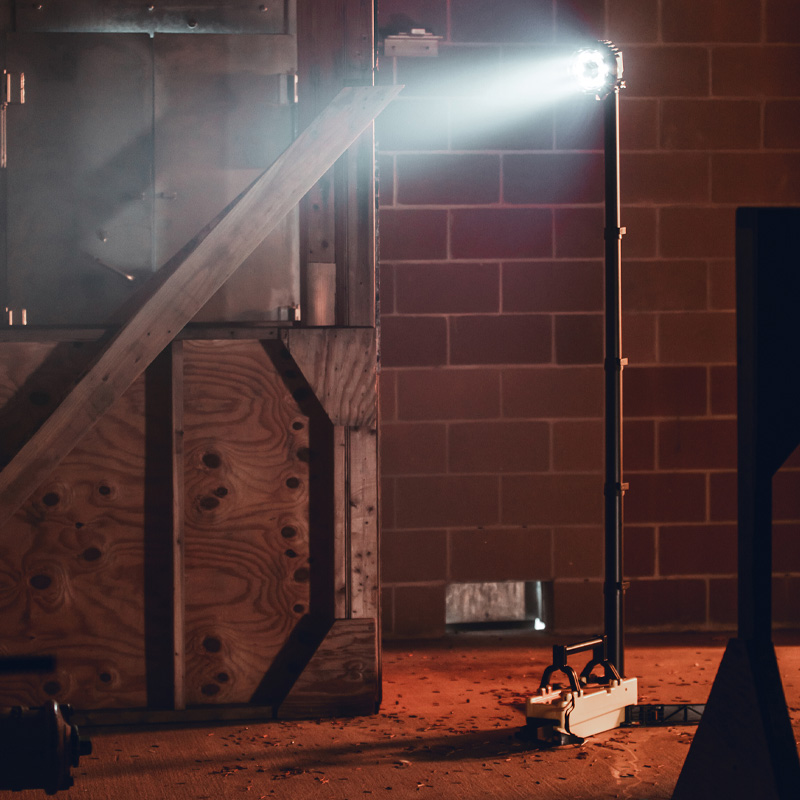

  • 07_situational_tunnel

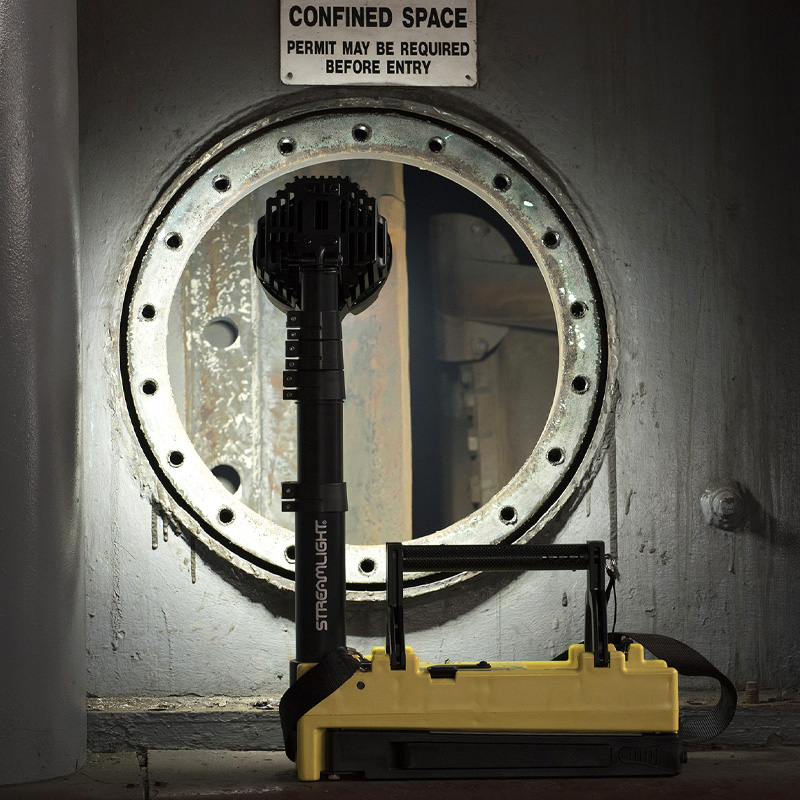

  • PortSceneLight_situational_data

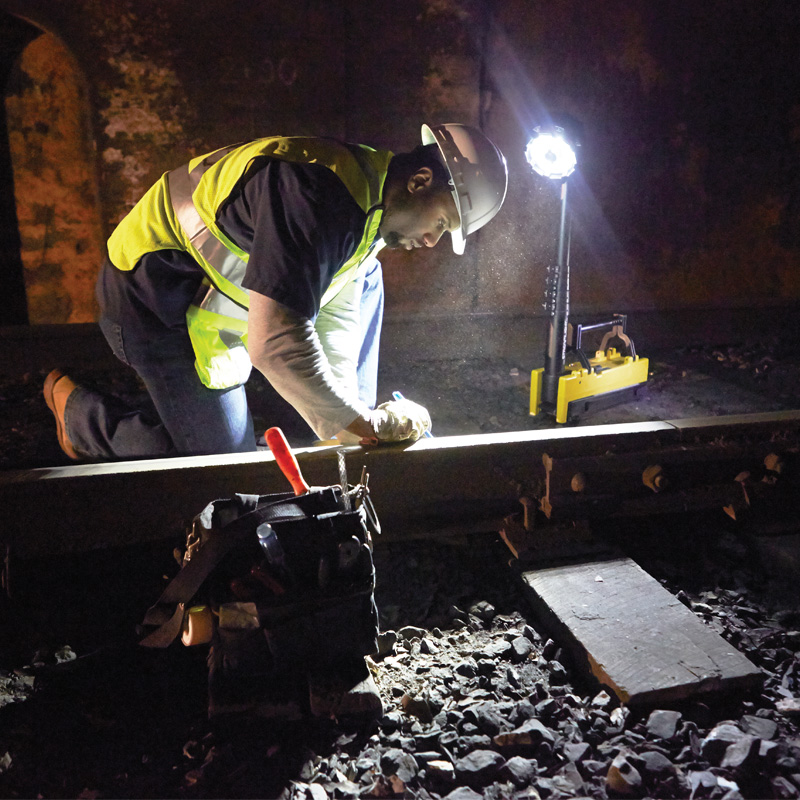

  • PortSceneLight_situational_railroad

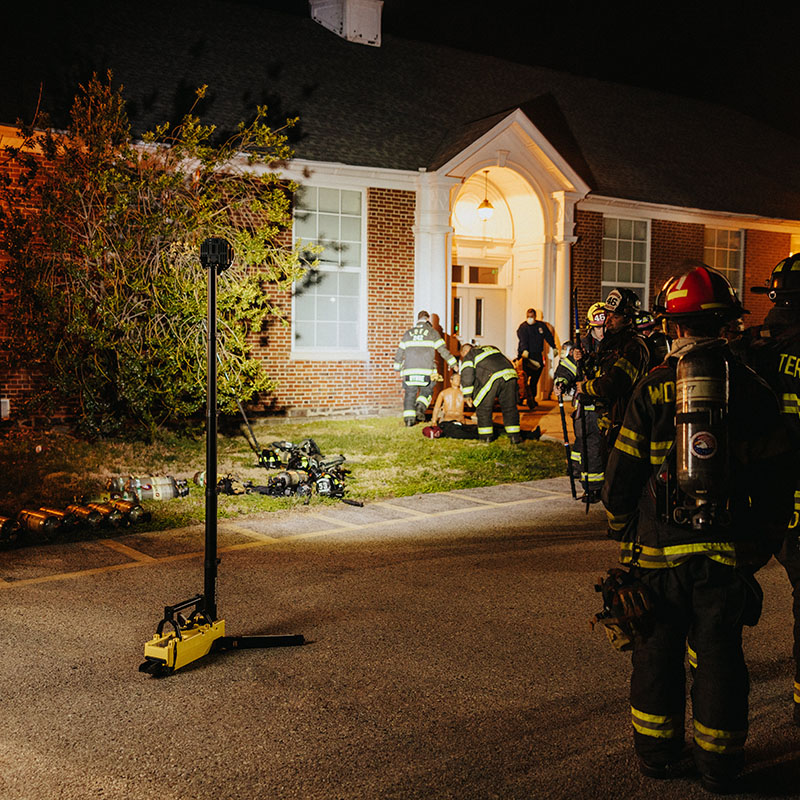

  • PSL_4

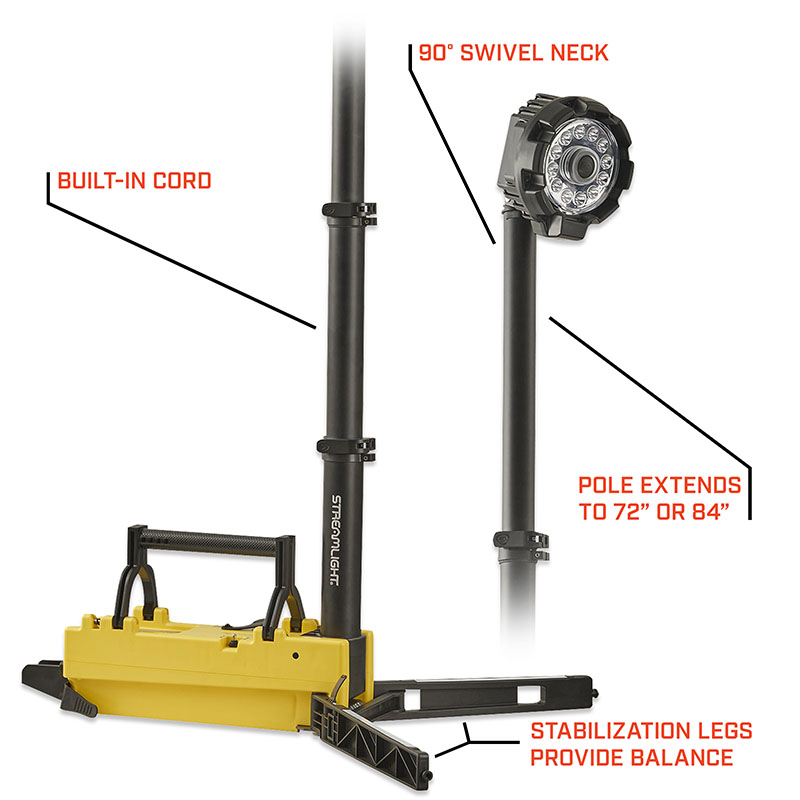

  • PortSceneLight_features

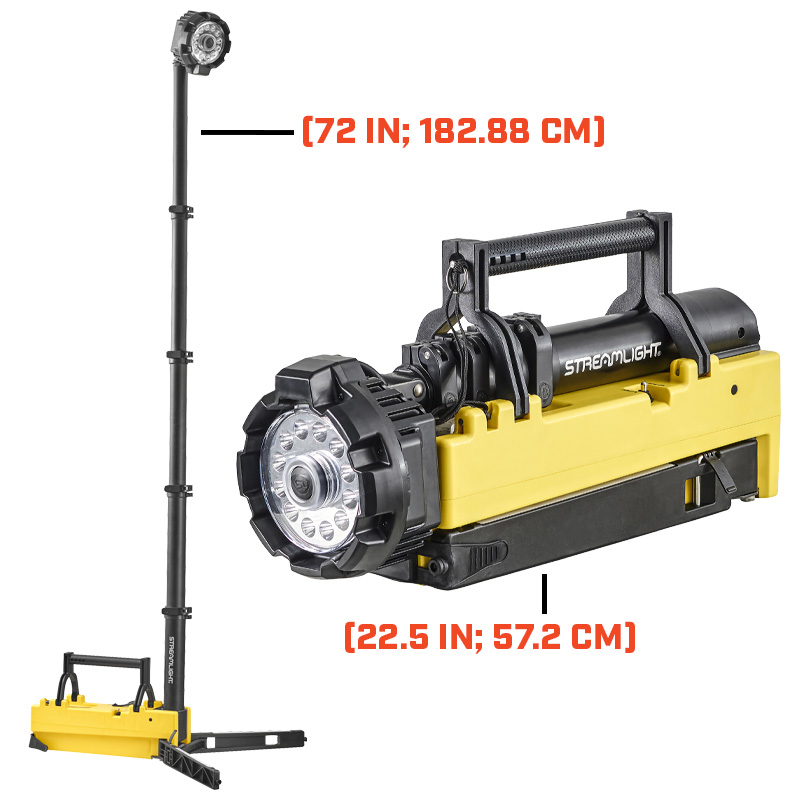

  • PortSceneLight_dimensions


Bright 5,300 Lumen, Portable and Collapsible Flood Light

Part Numbers List
  • 5,300 lumens; 410m beam distance (High)
  • 18 hour runtime (Low); AC/DC rechargeable
  • IP67 rated; dust-tight and waterproof to 1 m for 30 min; high impact thermoplastic housing

Product Specifications

High Lumens
5,300
Run Time on High
4.00 hours
Run Time on Low
18.00 hours
Beam Distance
410 meters
Battery Type
Lead Acid
Battery Quantity
2
Length
25.50 inches (64.77 centimeters)
Weight
25 pounds 8.00 ounces (11566.60 grams)
Colors
Yellow

Full product information can be found in the DOCUMENTATION section.

Loading...
Meets applicable United Kingdom and European Community Directives
IP67 tested
IP67 tested
CEC Compliant
CEC Compliant

Where to Buy

Enter your zip/postal code below to locate a Streamlight dealer.

Loading...
Meets applicable United Kingdom and European Community Directives
IP67 tested
IP67 tested
CEC Compliant
CEC Compliant

Where to buy

Enter your zip/postal code

Product Extra Info

C4® TECHNOLOGY LEAVES OTHER LEDs IN THE DARK.

NEW C4® LED TECHNOLOGY PUMPS UP THE BRIGHTNESS UP TO 3X MORE LIGHT INTENSITY.

c4-logo-w-regStreamlight introduces a whole new kind of LED. With a brighter, more powerful, blinding light than any LED that’s come before. Our new Streamlight-engineered reflector with C4 Photonic Crystal technology almost triples the brightness and creates an intense beam that pierces the darkness. So you get the long-run times and indestructibility of an LED with a new level of brightness that leaves other LEDs in the dark.

C4 approximates the range and brightness of a xenon bulb

FIRE VULCAN® LED – BLUE LED TAILLIGHTS

firevulcanled_back

Sidewinder Compact® II Light Output and Battery Run Time

LED TYPE Illumination
Output (100%)
Low
(10%) Output
Medium 1
(25%) Output
Medium 2
(45%) Output
High
(100%) Output
Strobe
(at 100% Output)
White C4® LED w/ CR123 55 Lumens
1175 Candela*
69m Beam Distance

70 Hours w/ CR123/AA Lithium Battery

40 Hours w/ AA Alkaline Battery

28 Hours w/ CR123/AA Lithium Battery

16 Hours w/ AA Alkaline Battery

16 Hours w/ CR123/AA Lithium Battery

8 Hours w/ AA Alkaline Battery

6 Hours w/ CR123/AA Lithium Battery

2 Hours w/ AA Alkaline Battery

10 Hours w/ CR123/AA Lithium Battery

4 Hours w/ AA Alkaline Battery

White C4® LED w/ AA Lithium 47 Lumens
1000 Candela*
63m Beam Distance
White C4® LED w/ AA Alkaline 47 Lumens
1000 Candela*
63m Beam Distance
5mm IR
880nm
25mW/sr (min)
radiant intensity

100+ Hours w/ CR123/AA Lithium Battery

100+ Hours w/ AA Alkaline Battery

72 Hours w/ CR123/AA Lithium Battery

48 Hours w/ AA Alkaline Battery

36 Hours w/ CR123/AA Lithium Battery

18 Hours w/ AA Alkaline Battery

16 Hours w/ CR123/AA Lithium Battery

9 Hours w/ AA Alkaline Battery

24 Hours w/ CR123/AA Lithium Battery

14 Hours w/ AA Alkaline Battery

5mm Red
630nm
1.5 Lumen
60 Candela*
15m Beam Distance

100+ Hours w/ CR123/AA Lithium Battery

100+ Hours w/ AA Alkaline Battery

72 Hours w/ CR123/AA Lithium Battery

48 Hours w/ AA Alkaline Battery

36 Hours w/ CR123/AA Lithium Battery

18 Hours w/ AA Alkaline Battery

16 Hours w/ CR123/AA Lithium Battery

9 Hours w/ AA Alkaline Battery

24 Hours w/ CR123/AA Lithium Battery

14 Hours w/ AA Alkaline Battery

5mm Blue
470nm
1.8 Lumens
130 Candela*
23m Beam Distance

100+ Hours w/ CR123/AA Lithium Battery

100+ Hours w/ AA Alkaline Battery

60 Hours w/ CR123/AA Lithium Battery

36 Hours w/ AA Alkaline Battery

24 Hours w/ CR123/AA Lithium Battery

12 Hours w/ AA Alkaline Battery

12 Hours w/ CR123/AA Lithium Battery

6 Hours w/ AA Alkaline Battery

18 Hours w/ CR123/AA Lithium Battery

10 Hours w/ AA Alkaline Battery

5mm Green
527nm
4.5 Lumens
68 Candela*
16m Beam Distance

100+ Hours w/ CR123/AA Lithium Battery

100+ Hours w/ AA Alkaline Battery

60 Hours w/ CR123/AA Lithium Battery

36 Hours w/ AA Alkaline Battery

24 Hours w/ CR123/AA Lithium Battery

12 Hours w/ AA Alkaline Battery

12 Hours w/ CR123/AA Lithium Battery

6 Hours w/ AA Alkaline Battery

18 Hours w/ CR123/AA Lithium Battery

10 Hours w/ AA Alkaline Battery

*Candela Peak Beam Intensity
All runtime claims to 10% of initial output level. Illumination output electronically regulated. (See model for specific LED configuration)

Sidewinder Compact® 185° Articulating Head

SWINDER_CMPCT_180DEG

tscg_logo_150

This product meets the manufacturing and performance testing requirements as authorized by the Product Manager - Clothing and Individual Equipment, Authorization Number FL090526-HH01, NSN Number 6230-01-574-6027. This authorization does not constitute an endorsement by the U.S. Army

Sidewinder Compact®

Rubber dome actuator and 4-position pull-to-turn locking rotary selector knob with IR tactile indicator (or green LED For tactical mode) offers easy operation even when wearing heavy gloves

SWINDER-COMPCT_DOME

Sidewinder Compact®

Clips onto helmet with helmet mount accessory. Fully rotates on mount in either direction. Sidewinder Compact is available with or without helmet mount.

SWINDER-CMPCT_HELMET

Sidewinder Compact®

Durable belt/clothing clip with integral helmet mount features allow for hands-free use

SWINDER-CMPCT_BACK

Sidewinder Compact Light Output and Battery Run Time

LED TYPE Illumination
Output (100%)
Low
(5%) Output
Medium 1
(25%) Output
Medium 2
(60%) Output
High
(100%) Output
Strobe
(at 100% Output)
White C4® LED 55 Lumens
1175 Candela*
69m Beam Distance
60+ Hours 28 Hours 9 Hours 5.25 Hours 9 Hours
5mm IR
880nm
25mW/sr (min)
radiant intensity
100+ Hours 48 Hours 24 Hours 14 Hours 24 Hours
5mm Red
630nm
1 Lumen
40 Candela*
13m Beam Distance
100+ Hours 48 Hours 24 Hours 14 Hours 24 Hours
5mm Blue
470nm
1.8 Lumens
130 Candela*
23m Beam Distance
100+ Hours 36 Hours 18 Hours 10 Hours 18 Hours
5mm Green
527nm
4.5 Lumens
68 Candela*
16m Beam Distance
100+ Hours 36 Hours 18 Hours 10 Hours 18 Hours
*Candela Peak Beam Intensity
All runtime claims to 10% of initial output level. Illumination output electronically regulated. (See model for specific LED configuration)

tscg_logo_150

This product meets the manufacturing and performance testing requirements as authorized by the Product Manager - Clothing and Individual Equipment, Authorization Number FL090526-TH01, NSN Number 6230-01-571-8752. This authorization does not constitute an endorsement by the U.S. Army

Sidewinder® w/ C4® Light Output and 2 AA Alkaline Battery Run Time

LED Light Output Low
(5%) Output
Medium 1
(25%) Output
Medium 2
(60%) Output
High
(100%) Output
Strobe
(at 100% output)
White C4® LED 55 Lumens
1175 Candela*
69m Beam Distance
100 Hours+ 45 Hours 11 Hours 5.5 Hours 10 Hours
5mm IR LED (880nm) 25mW/sr (min) radiant intensity 200 Hours+ 140 Hours 60 Hours 24 Hours 40 Hours
5mm Red LED (630nm) 1 Lumen
40 Candela*
13m Beam Distance
200 Hours+ 140 Hours 60 Hours 24 Hours 40 Hours
5mm Blue LED (470nm) 1.8 Lumens
130 Candela*
23m Beam Distance
150 Hours+ 100 Hours 35 Hours 16 Hours 30 Hours
5mm Green LED (527nm) 4.5 Lumens
68 Candela*
16m Beam Distance
150 Hours+ 100 Hours 35 Hours 16 Hours 30 Hours
*Candela Peak Beam Intensity
Illumination output electronically regulated. (See model for specific LED configuration)
