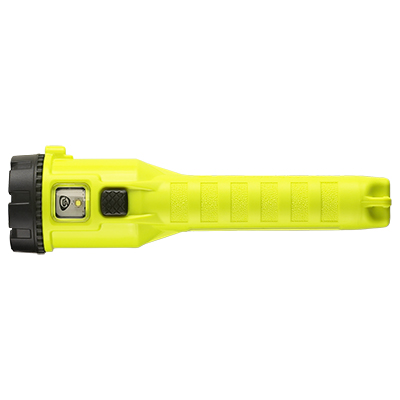

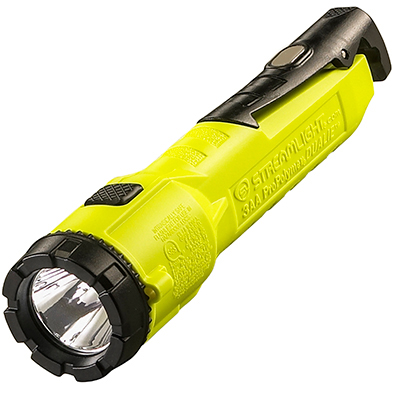

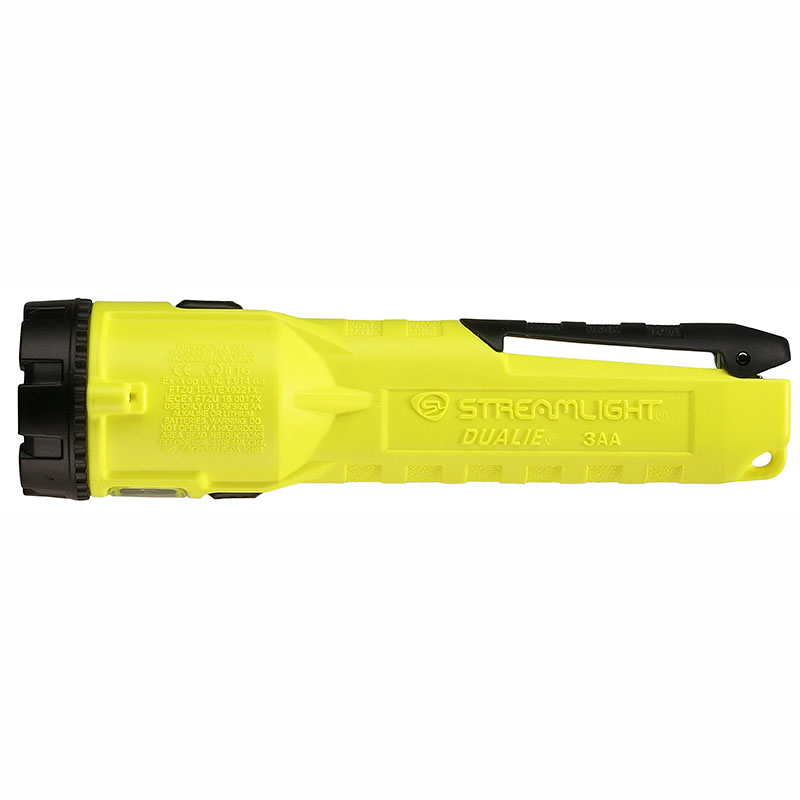

DUALIE® 3AA FLASHLIGHT

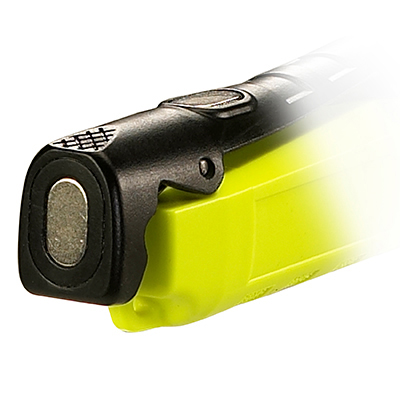

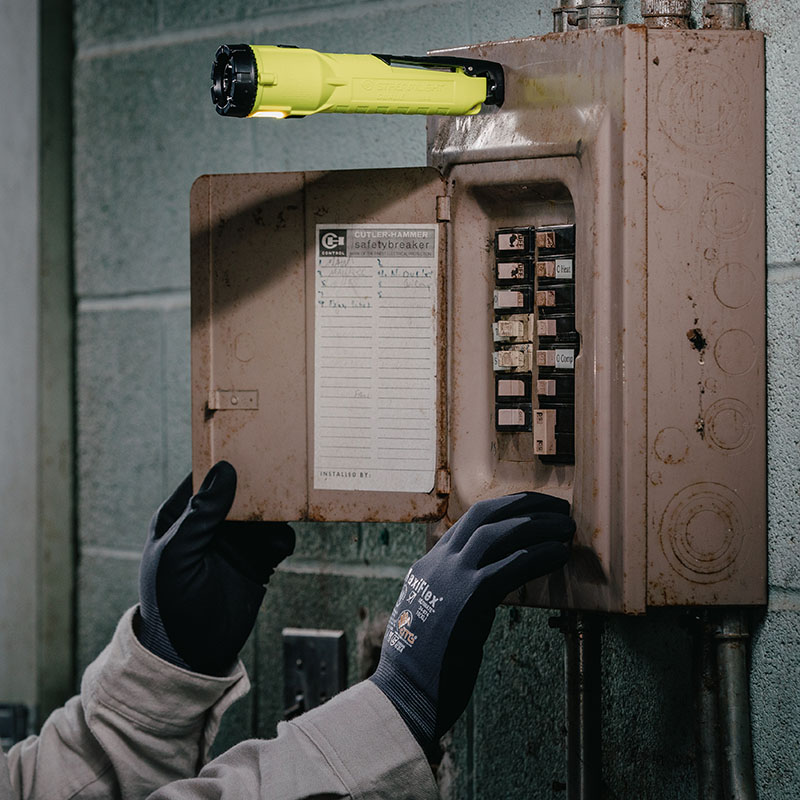

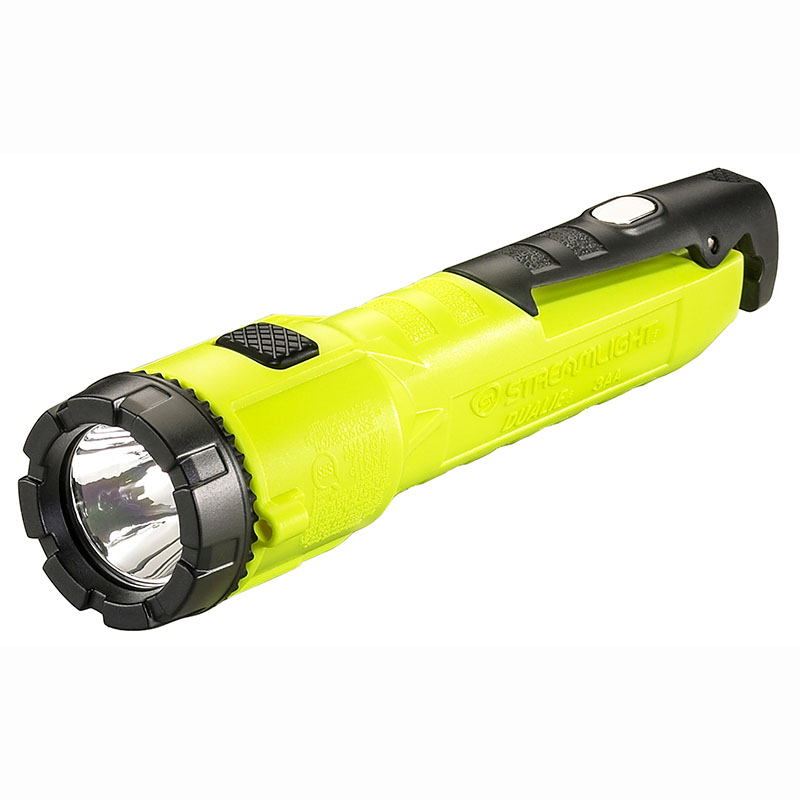

Intrinsically Safe, Multi-Function Flashlight with Optional Magnetic Clip

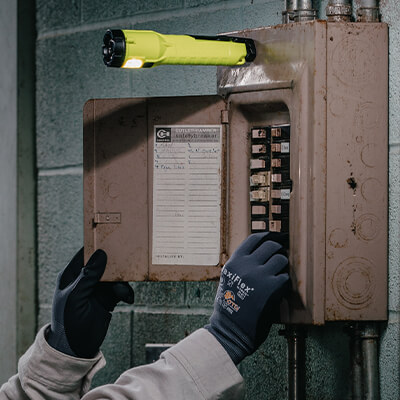

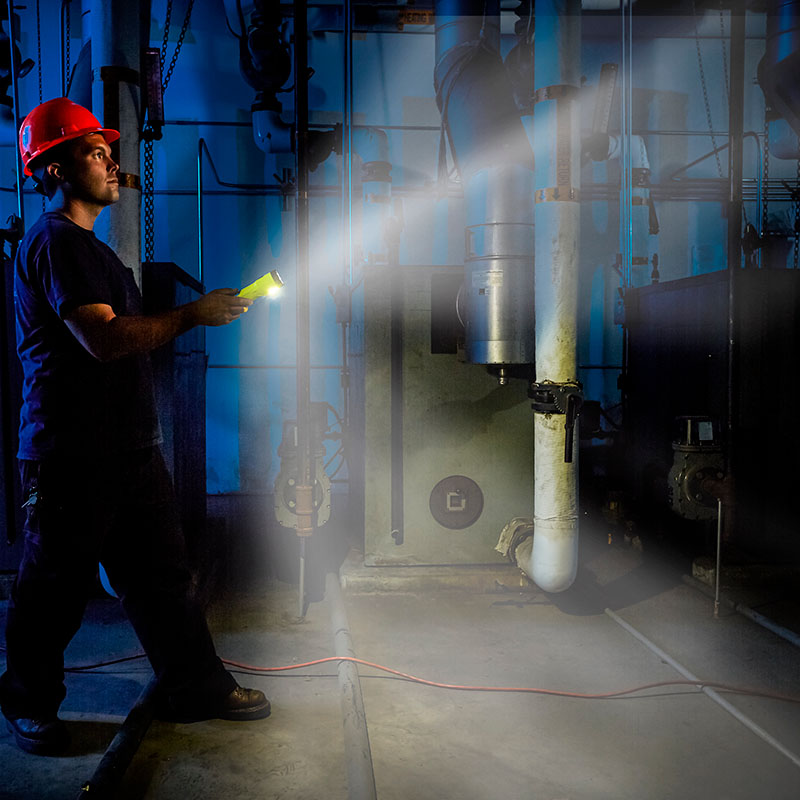

Part Numbers ListSee what's ahead of you and right at your feet with the Dualie® 3AA. Its bright light, which shines both ahead of you and downward, helps you avoid slips, trips and falls.
- Click here for data sheet
- Intrinsically safe
- MSHA Permissible Handheld Flashlight

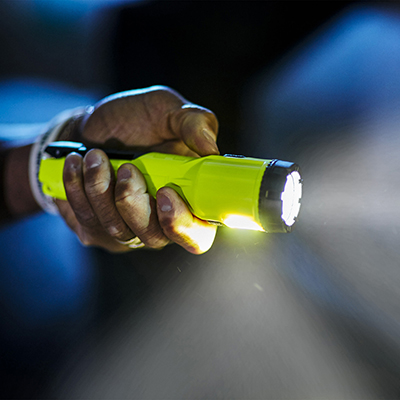

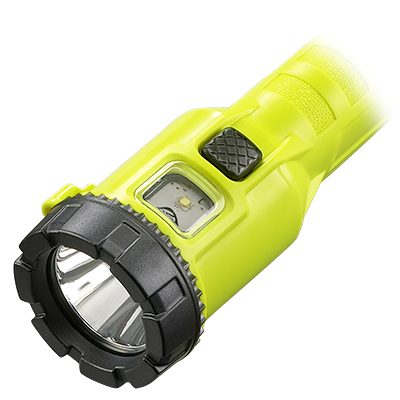

- Features two LEDs and three lighting modes: spot, flood, spot and flood simultaneously
- Spot: 140 lumens; 171m beam; runs 18 hours; 7,300 candela
- Smooth parabolic reflector provides tight beam with optimum peripheral illumination
- Flood: 140 lumens; 8m beam; runs 18 hours; 80 candela

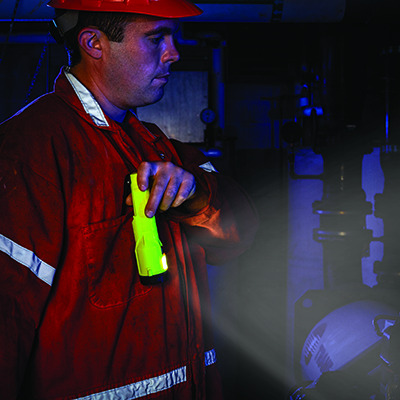

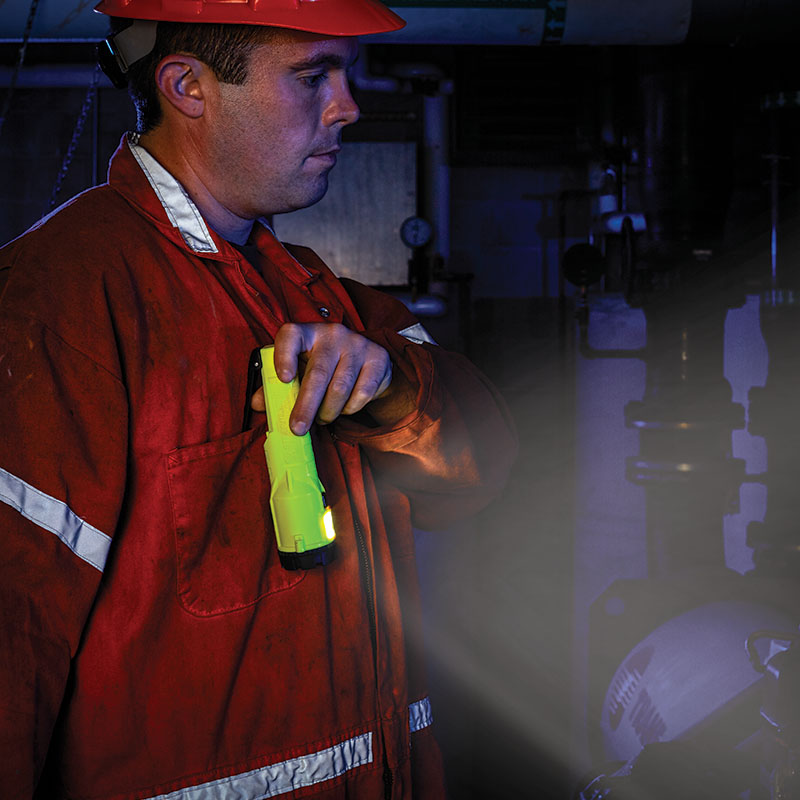

- Flood beam produces a soft, wide beam to illuminate your work area
- Spot/Flood combo: 245 lumens; runs 9 hours
- Spot: 140 lumens; 171m beam; runs 18 hours; 7,300 candela
Product Specifications
High Lumens
245
Run Time on High
9.00 hours
Run Time on Low
18.00 hours
Beam Distance
171 meters
Max Candela
7,300
Battery Type
AA Alkaline, AA Lithium
Battery Quantity
3
Length
7.00 inches (17.78 centimeters)
Weight
6.80 ounces (192.78 grams)
Colors

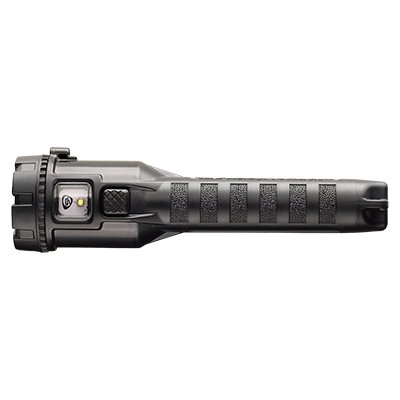

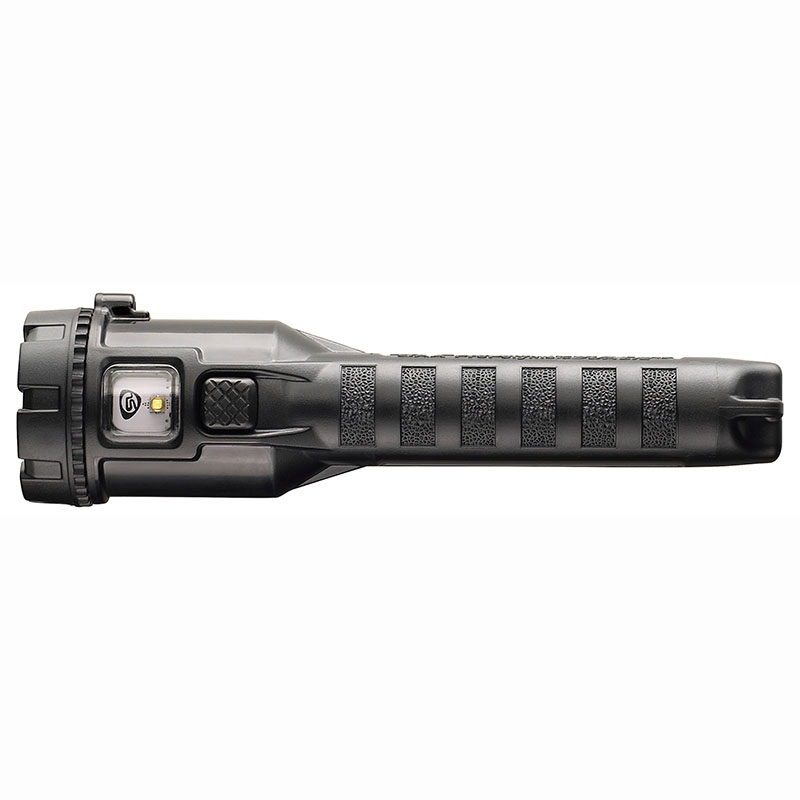

Yellow, Black
Full product information can be found in the DOCUMENTATION section.
