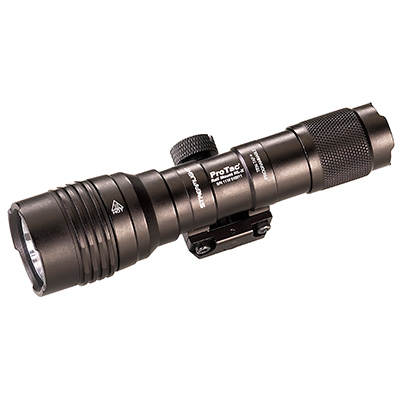

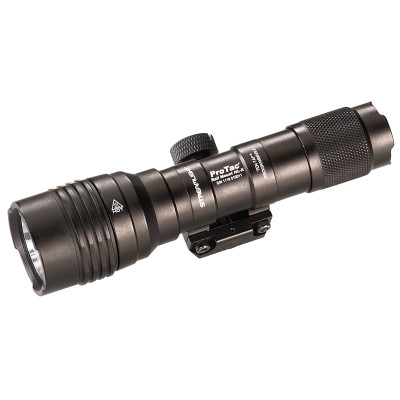

PROTAC® RAIL MOUNT HL-X LONG GUN LIGHT
Bright 1,000 Lumen Tactical Long Gun Light
Part Numbers ListThe ProTac® Rail Mount HL-X is a 1,000 lumen weapon-mounted light featuring a fixed mount for MIL-STD-1913 (Picatinny) rails or with the included M-LOK® mount allowing for alternative mounting options to M-LOK® and M-LOK® compatible rail systems. It uses either a remote pressure switch or a standard push-button tail cap switch, and can run on multiple battery types.
- Click here for data sheet
- TEN-TAP® programming allows for selection of three different operating programs:
1) high/strobe 2) high only 3) low/high- High: 1,000 lumens; 447m beam distance; 50,000 candela; runs 1.25 hours (CR123A); runs 1.75 hours (SL-B26)
- Low: 60 lumens; 111m beam distance; 3,100 candela; runs 21 hours (CR123A); runs 24 hours (SL-B26)
Product Specifications
High Lumens
1,000
Run Time
1.25 hours
Beam Distance
447 meters
Max Candela
50,000
Battery Type
Streamlight SL-B26 Protected Li-Ion USB Rechargeable Battery Pack, CR123A Lithium
Battery Quantity
1 - 2
Length
5.43 inches (13.79 centimeters)
Weight
6.40 ounces (181.44 grams) - 6.90 ounces (195.61 grams)
Colors
Black
Full product information can be found in the DOCUMENTATION section.
